VOID CLOUD (Image Target Recognition)

Note

Support：Android / iOS / Windows

OSX platform note: VOIDAR_Unity_v1.0_Beta4 does not support running on OSX platform, but building iOS app works OK.

Part 1. Introduction

VOID CLOUD (Image Target Recognition) is to store the recognition data ( image target and display resources ) in cloud server, to run the recognition algorithm in cloud, to achieve accurate recognition and tracking of AR effect.

Part 2. Reading Guidelines

This tutorial is mainly to introduce how to process in Unity environment.

We assume that readers have basic experience in app development and unity usage.

For more unity3d usage information, please visit the official website of unity3d documentation.

Part 3. Development Environment

You need to install and prepare your development environment as below before you start.

OS

Windows 7 or higher
OS X 10.10 or higher

Unity Version Support

Unity3D Version	VOID AR SDK Full Features
5.6.x	Support All Features
2017.x	Support All Features
2018.x	Support All Features
2019.1.x	Support All Features
2019.2.0	Support All Features

Note

Unity3D of this tutorial: Unity 2017.4.13

Unity3D Download: https://unity3d.com/cn/get-unity/download/archive

Part 4. Implementation process

Open the cloud platform url, and register an accout and login.

Website Url: https://cloud.voidar.net

254

Step 2. Create Database for Cloud Recognition

Go to the cloud platform, the new user need to create a new database for recognition data management.

Click [ Create database ] , one database is allowed for each account.

255

Fill in your database name from poping interface (Chinese character is accepted).

This tutorial will set the name of the database as “VOID SLAM”.

After database setup, click [ save ] button.

256

After that, you will get your “Accsess Key” and “Secret Key” for later use.

257

Step 3. Cloud Resources management

Click the “VOID SLAM” in database management interface to go to the cloud resource management interface.

259

It is blank for new user. Click [ Upload Image ] button to add data.

260

The interface of upload is like below:

261

1 Resource name ( Required, Chinese supported )

2 Customized data ( For cloud video playback, skip for this tutorial )

3 Upload the recognition image ( JPG only )

4 Select the assetbundle platform ( ios / android/ windows / mac )

5 Select the assetbundle file corresponding to the platform

Note

You'd better test the recognition in local first before upload the resource to the cloud.

The tutorial below is teaching you how to create local image recognition based on single target. If you are already familiar with this process, please skip to Step 12.

Step 4. Open new Unity project

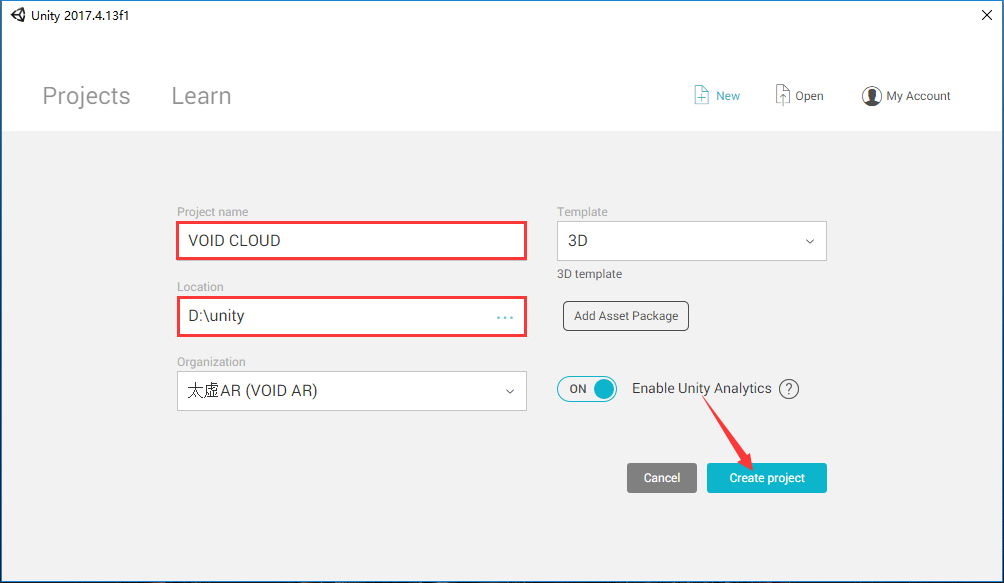

Open Unity with new project. Fill the Project name with “VOID CLOUD”, and select the location, and click [ Create project ].

Step 5. Import VOID AR SDK

Select[ Assets ] -> [ Import Package ] -> [ Custom Package... ], import VOID AR SDK.

Select the downloaded SDK file (.unitypackage), and click [ Open ] button.

Click [ Import ] from the prompted window. It takes minutes during the import process.

If there is a prompt window of “API Update Required” interface，please click [ I Made a Backup, Go Ahead! ].

Step 6. Delete Main Camera

Note

When you open the Unity3D, you will see the new scene in default. The new scene has two GameObjects: a "Main Camera" and a "Directional Light". We need to use the ARCamera from SDK, so please delete the default Camera.

Right click the "Main Camera” from the scene, and select [ Delete ].

Step 7. Drag the prefabs “ARCamera” and “ImageTarget”

Expand the directory [ Assets ] -> [ VoidAR ] -> [ Prefabs ],

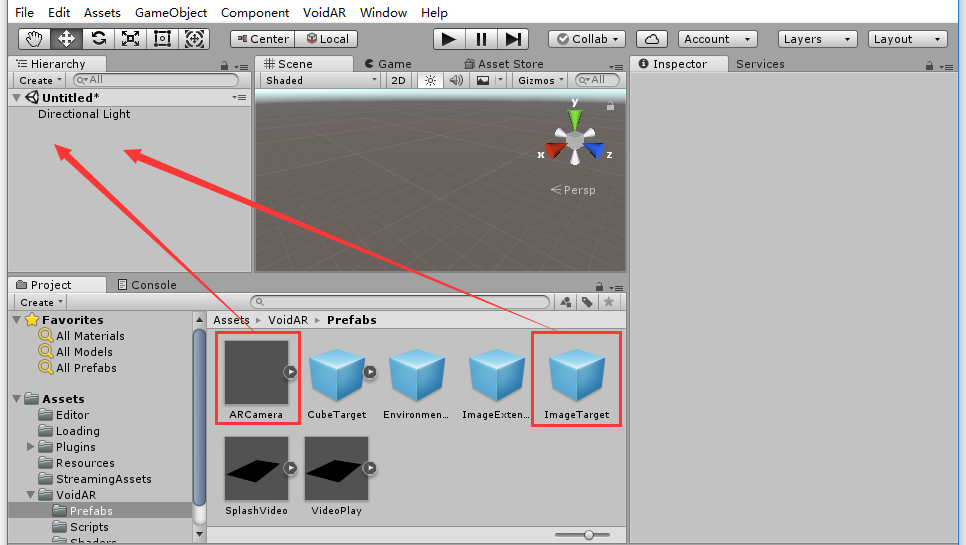

and drag the prefabs “ARCamera” and “ImageTarget” to the scene.

When you finish the process, it shows as below:

Step 8. ARCamera Setup

Select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.

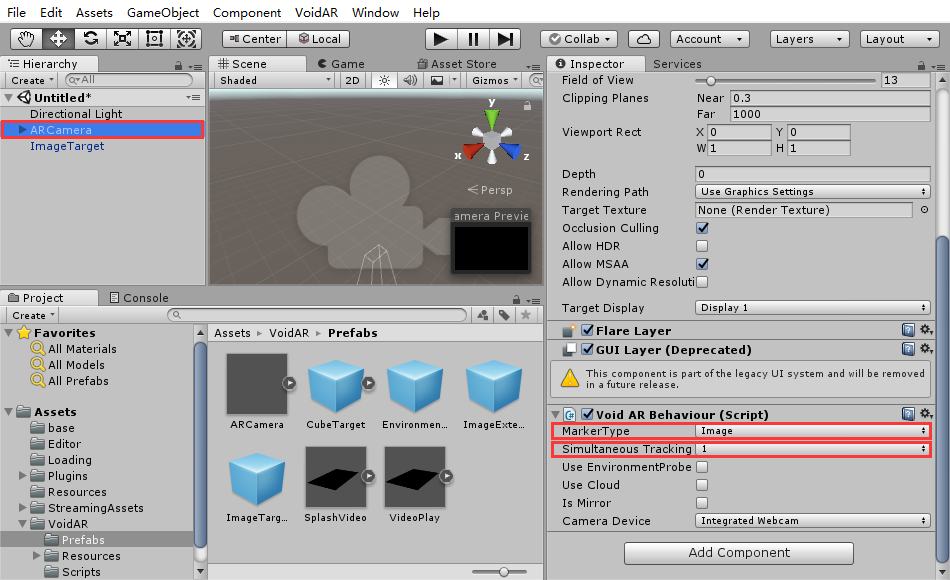

Set MarkerType = "Image", stands for image target recognition
Set Simultaneous Tracking = "1", representing the number of simultaneous tracking marker is 1

Step 9. Marker Setup

Select ImageTarget, look up the “Inspector” area on the right side, setup the “Image Target Behaviour (Script)” properties.

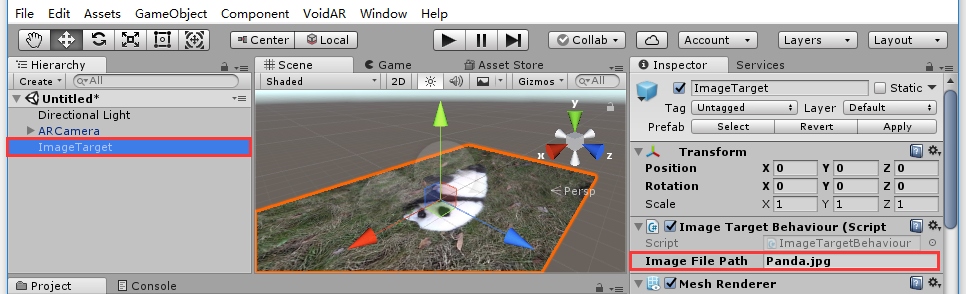

Set Image File Path = "Panda.jpg", the format is “filename”+“Suffix JPG”

Warning

Marker files must locate in [ Assets ] -> [ StreamingAssets ] folder. This tutorial uses the built-in marker file in SDK.

Step 10. Model Setup

Note

You need to have your model for recognition under the ImageTarget.

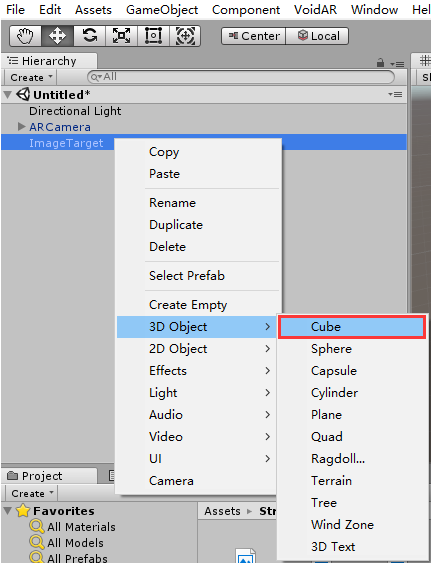

Right click the “ImageTarget” in the scene, add a 3D model “Cube”.

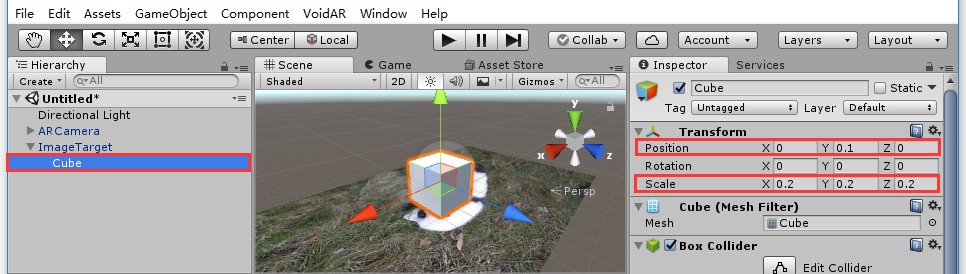

Select the “Cube”, adjust its size and position.

Step 11. Debug

Warning

Make sure your PC is connected with a camera.

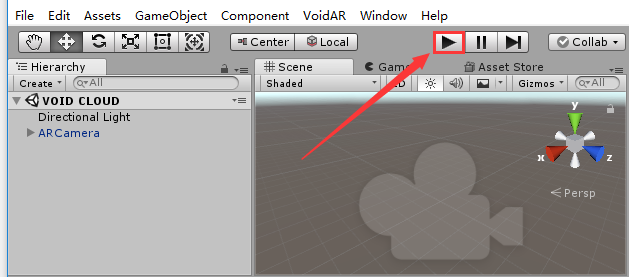

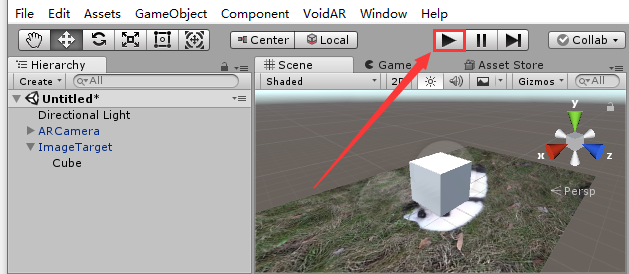

Click [ Play ] button.

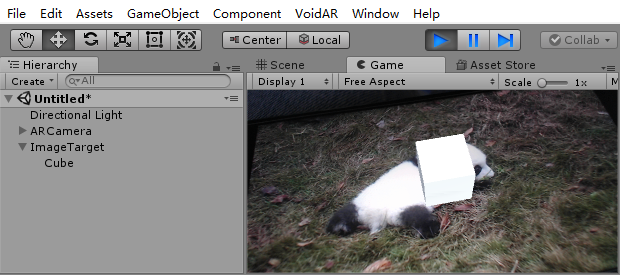

Recognize successfully and complete debugging.

Step 12. Setup Cloud Recognition parameters

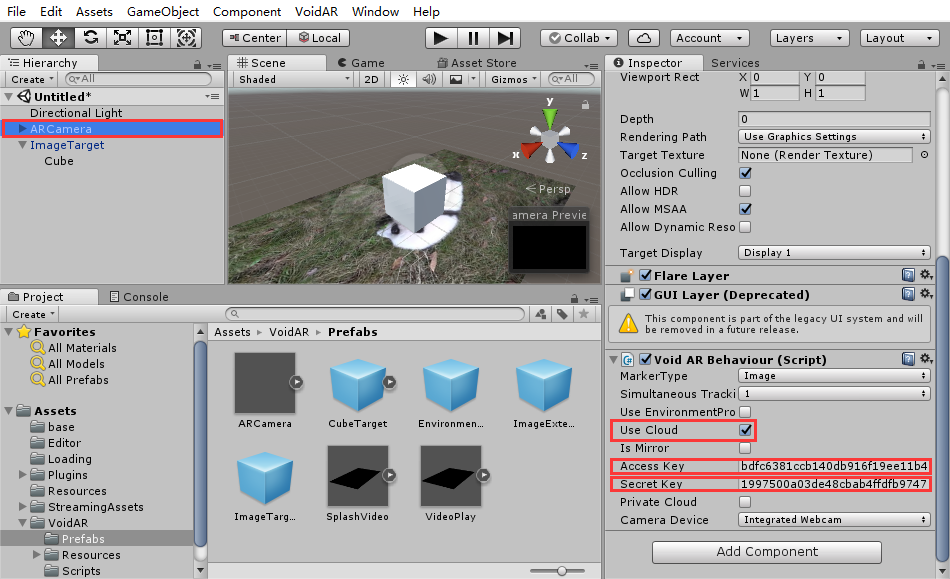

Select the ARCamera, check the “Inspector” area on the right, and setup the “Void AR Behaviour (Script)” property.

Check “Use Cloud”
AccessKey: your accessKey from your account ( See step 2 )
SecretKey: your secretKey from your account ( See step 2 )

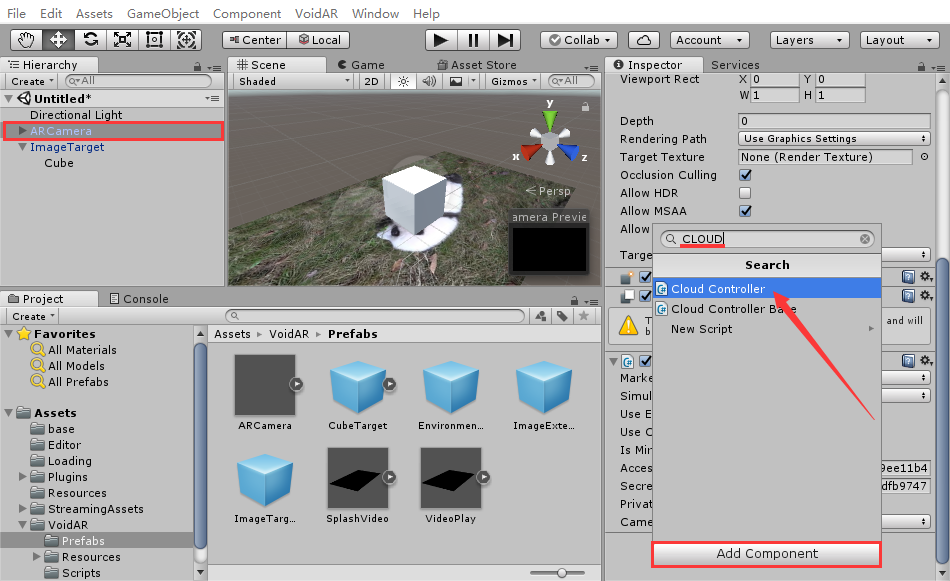

Select the “ARCamera”, click [ Add Component ] to add “Cloud Controller” script.

After binding, it shows as below:

Step 13. Build Assetbundle

Important

After you finish the local single-target image recognition debugging, by the use of AssetBundle of the Unity3D, you can package the local resource "ImageTarget" to AssetBundle file for uploading to the Cloud platform supported by VOID AR to achieve Cloud Recognition.

First, to make the ImageTarget become a Prefab.

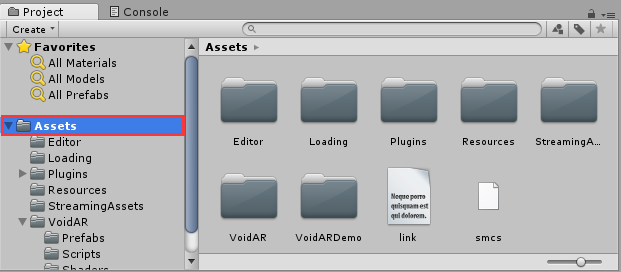

Click [ Assets ].

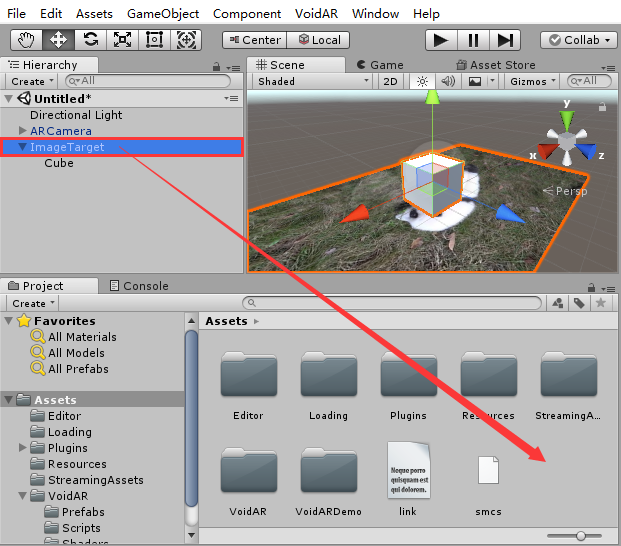

Drag the “ImageTarget” in the Hierarchy to Assets folder.

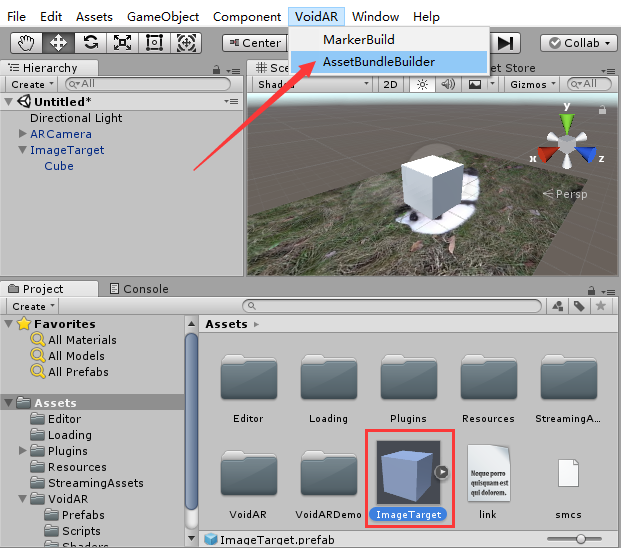

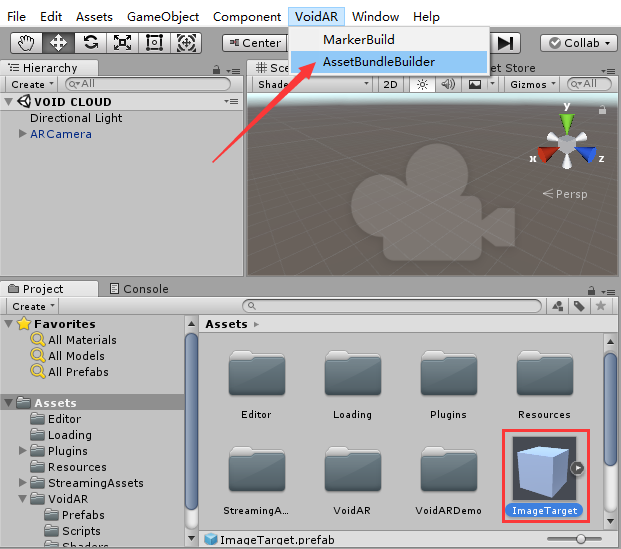

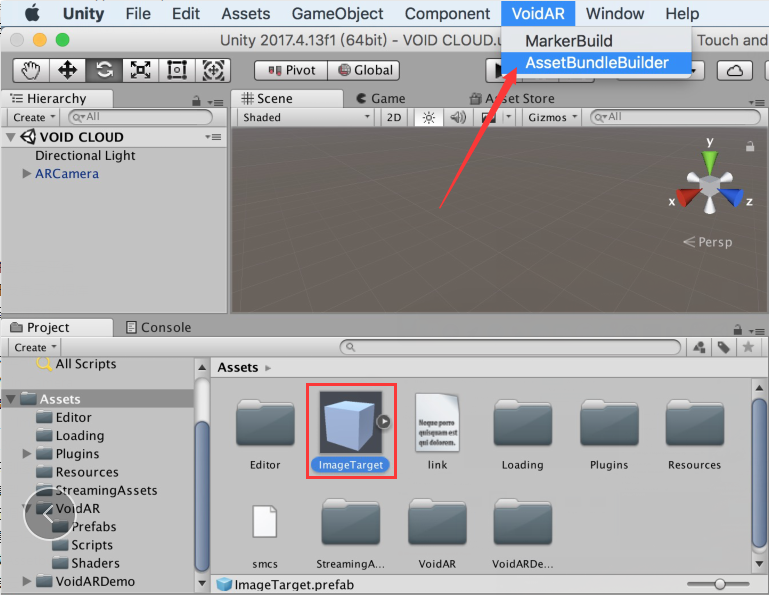

Select the “ImageTarget.prefab” generated just then, and click [ VoidAR ] -> [ AssetBundleBuilder ].

Note

Different platform requires different option checked.

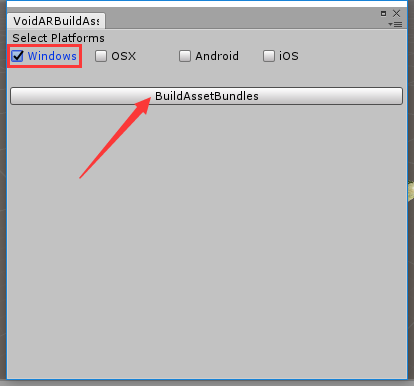

Check [ Windows ] first, then click the [ BuildAssetBundles ].

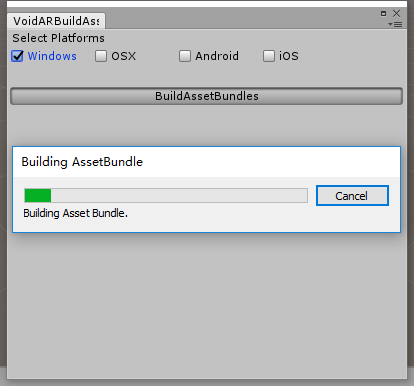

It takes minutes for generating, please wait...

Close this window after generating is done.

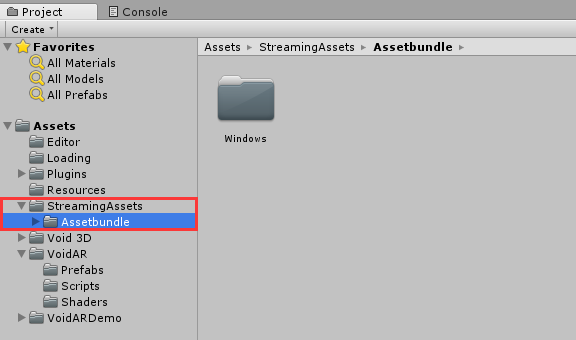

There will be a folder “Assetbundle" under the directory "StreamingAssets".

There will be a platform folder corresponding to each platform, shown as below:

Step 14. Upload Cloud Recognition Resource

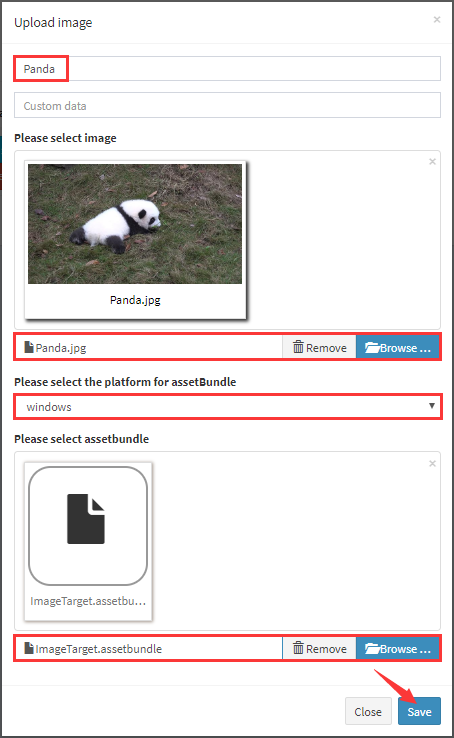

Back to the interface of Step 3, setup and upload the corresponding resource.

Image filename = "Panda"
Upload image resource
Set the platform of assetbundle = “windows” ( In Step 17, we will achieve cloud recognition in Windows )
Upload the assetbundle file

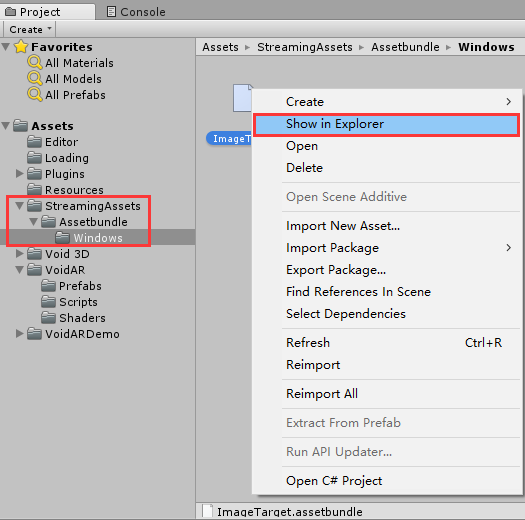

You can find the directory of the "image" file or "assetbundle" file by checking in Unity and right click the corresponding resource and select [ show in Explorer ]. Find the assetbundle file path of the Windows as below:

After upload is done, click [ Save ].

270

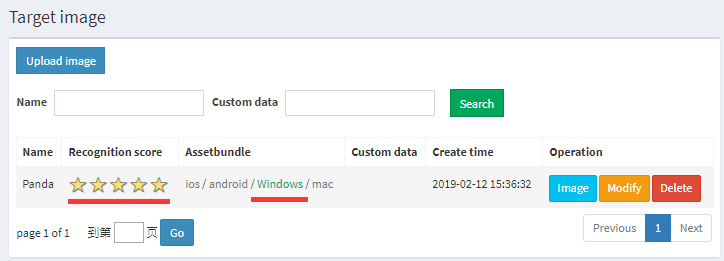

After uploading, there will be a new record in the cloud resource database with evaluation score. The higher score, the better quality of the image marker. Moreover, the corresponding platform will be highlighted.

272

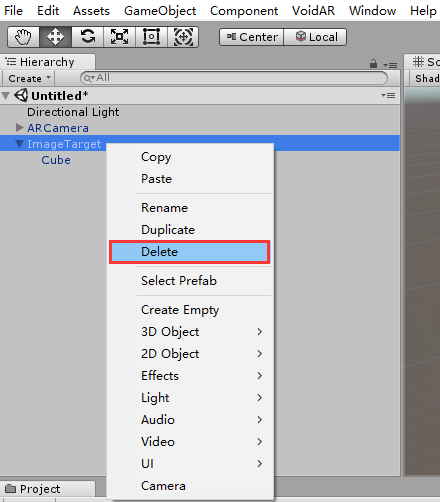

Step 15. Delete the ImageTarget

Important

Because you have already uploaded your "assetbundle" to the cloud platform, you can delete the ImageTarget in Unity.

Step 16. Save Scene

Select [ File] -> [ Save Scenes ] , click for saving your setup.

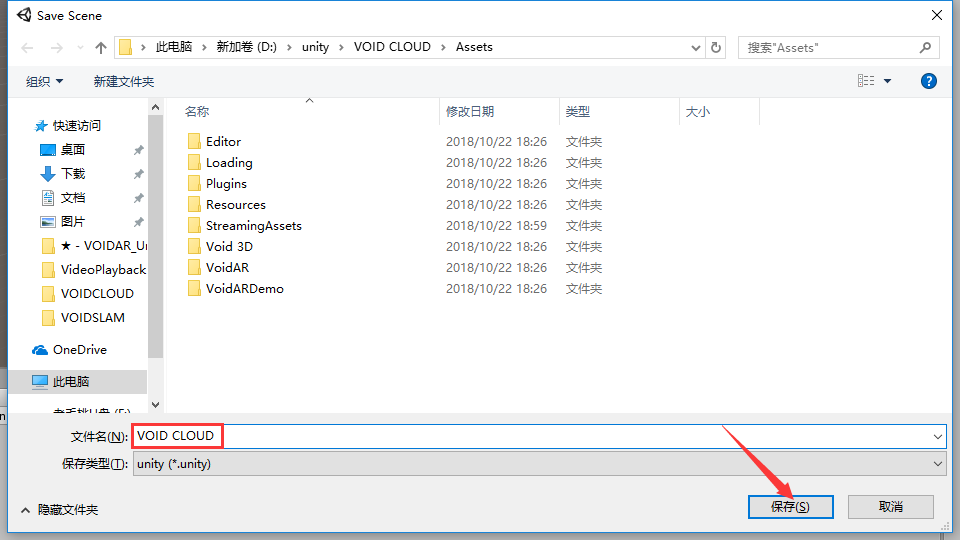

Setup the name as “VOID CLOUD””, and click [ save ] button.

Step 17. Run Cloud Recognition in Windows

Warning

Make sure your PC is connected with a camera.

Click [ Run ].

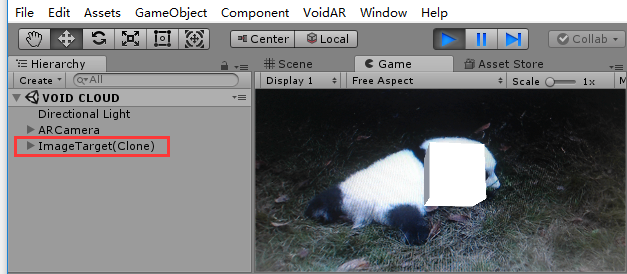

When you see the model in stage, and the “ImageTarget(Clone)” appears in Hierarchy, the cloud recognition is successful.

Step 18. Publishing Builds

Build Process includes Android, iOS, and Windows exe.

Android

First, switch the PC platform to Android platform from [ File ] -> [ Build Settings... ].

Select Android tag, if the [ Switch Platform ] button is grey, you need to download the Unity Android Support. Please click on the right side of the [ Open Download Page ] button, download and install.

Click [ Switch Platform ] button, switch the platform to Android.

After switch process, close the Build Settings interface first, and continue with packing.

Select [ Edit ] -> [ Preferences... ], setup the preferences parameters.

Select “External Tools” option, setup Android SDK and JDK。

Note

If you do not have SDK and JDK, please click [ Download ] from the interface, it will guide you to download from the prompted website.

Or you can also download from links below:

SDK: https://developer.android.com/studio/index.html

JDK: https://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html

After the installation of SDK and JDK, you are able to setup their directory.

Build the Assetbundle for the Android platform

Next, build the Assetbundle for the Android platform. Select the “ImageTarget.prefab” generated just then, and click [ VoidAR ] -> [ AssetBundleBuilder ].

112

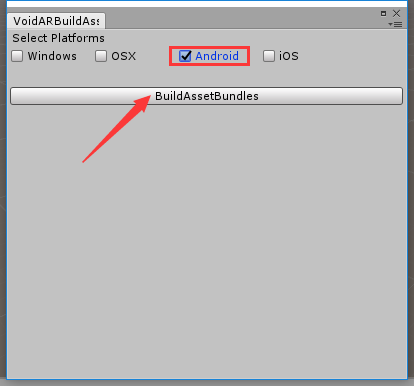

Check [ Android ], and click [ BuildAssetBundles ].

113

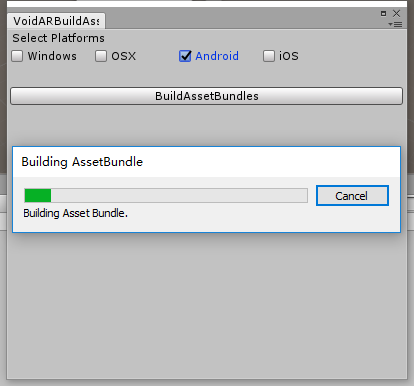

It takes minutes for generating, please wait...

114

Close this window after generating is done.

Back to cloud platform management interface, setup for corresponding resource.

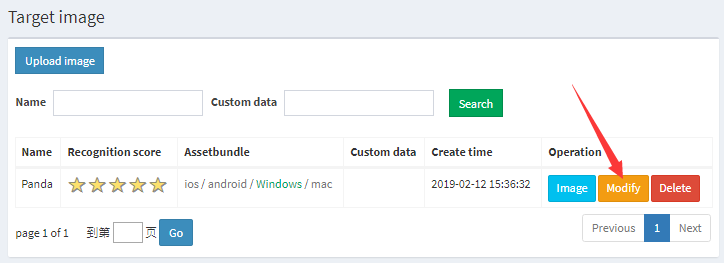

Click [ Modify ] for “Panda” marker.

297

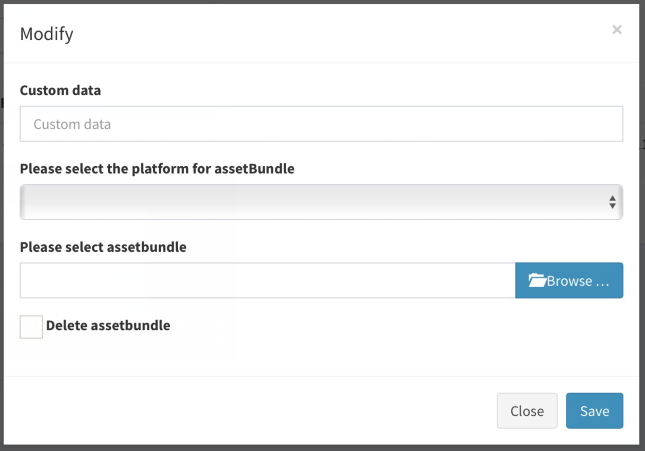

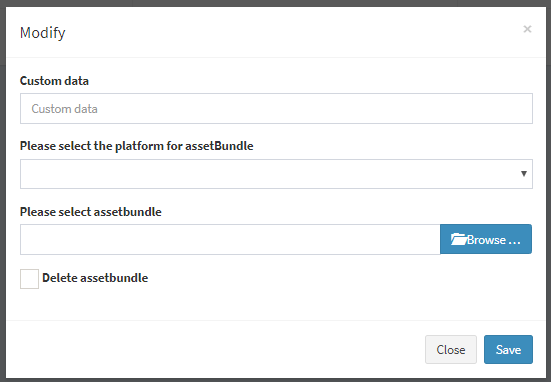

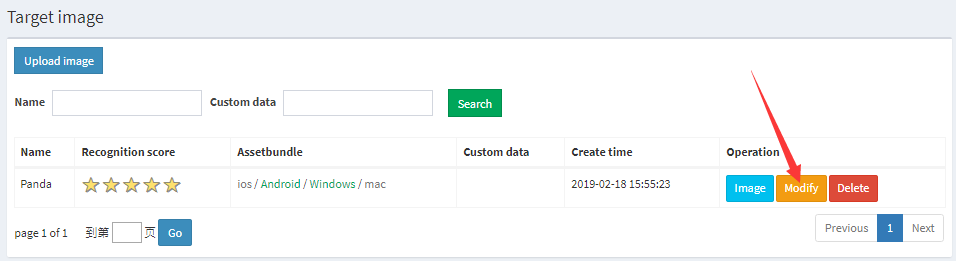

You will see as below:

299

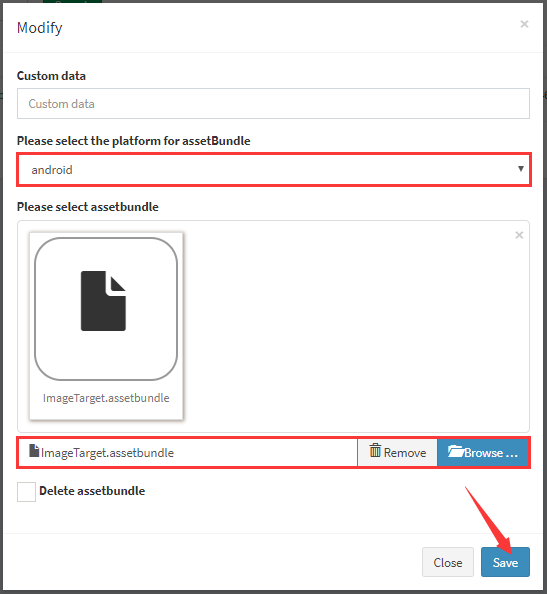

Set assetbundle platform = “android”
Upload assetbundle file

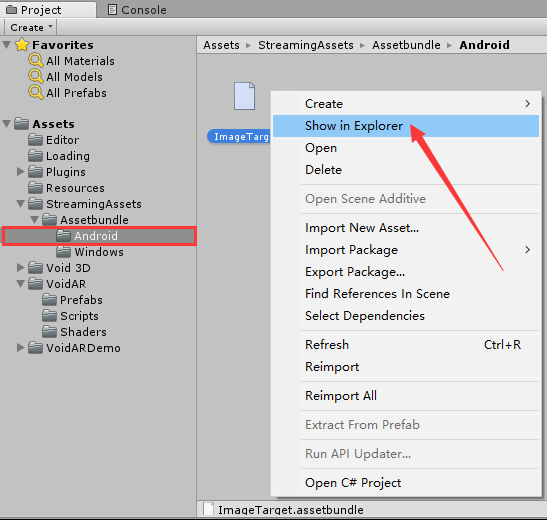

You can find the directory of your "assetbundle" file by checking in Unity and right click the corresponding resource and select [ show in Explorer ].

For the assetbundle file path of Android, it shows as below:

After upload is done, click [ Save ].

298

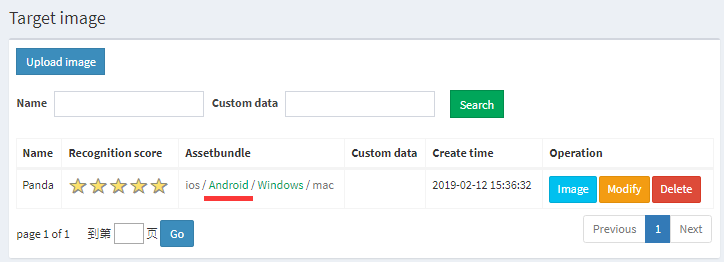

After upload, the "Android" platform is highlighted as below:

300

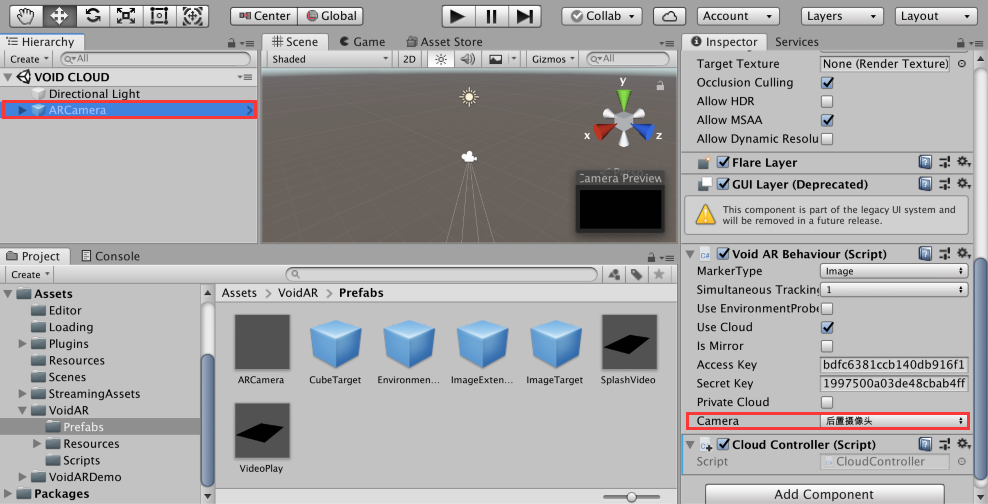

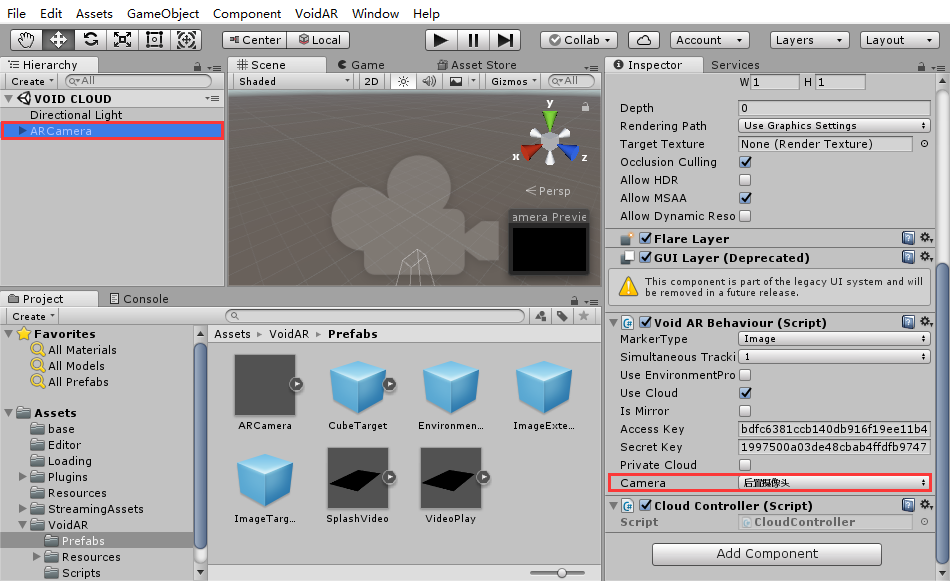

Back to Unity, select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.

Set Camera = "后置攝像頭"(Rear camera)

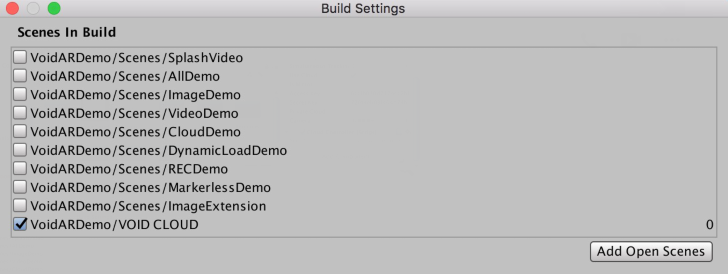

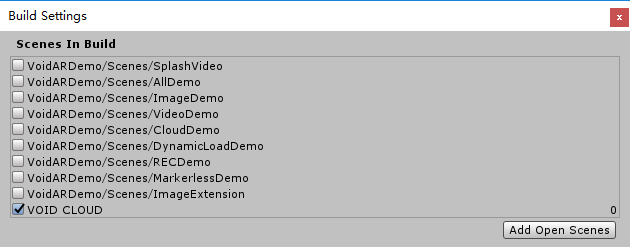

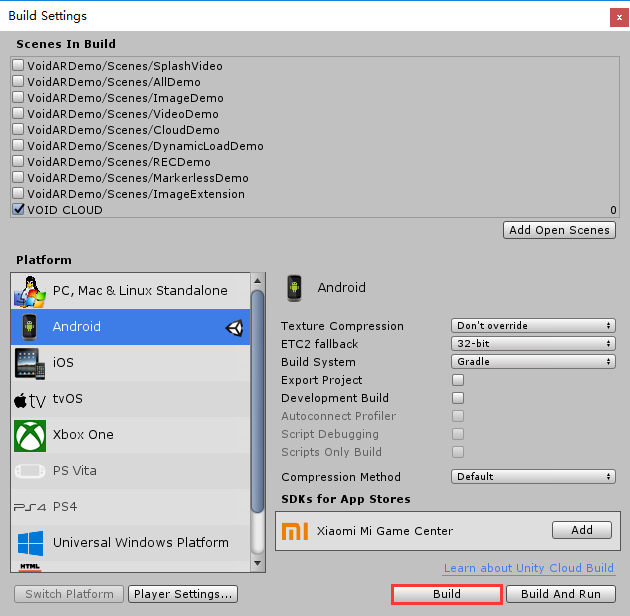

Select [ File ] -> [ Build Settings... ], cancel all default scenes, and click [ Add Open Scenes ] button to add current scene into the build area.

It shows as below:

Setup parameters

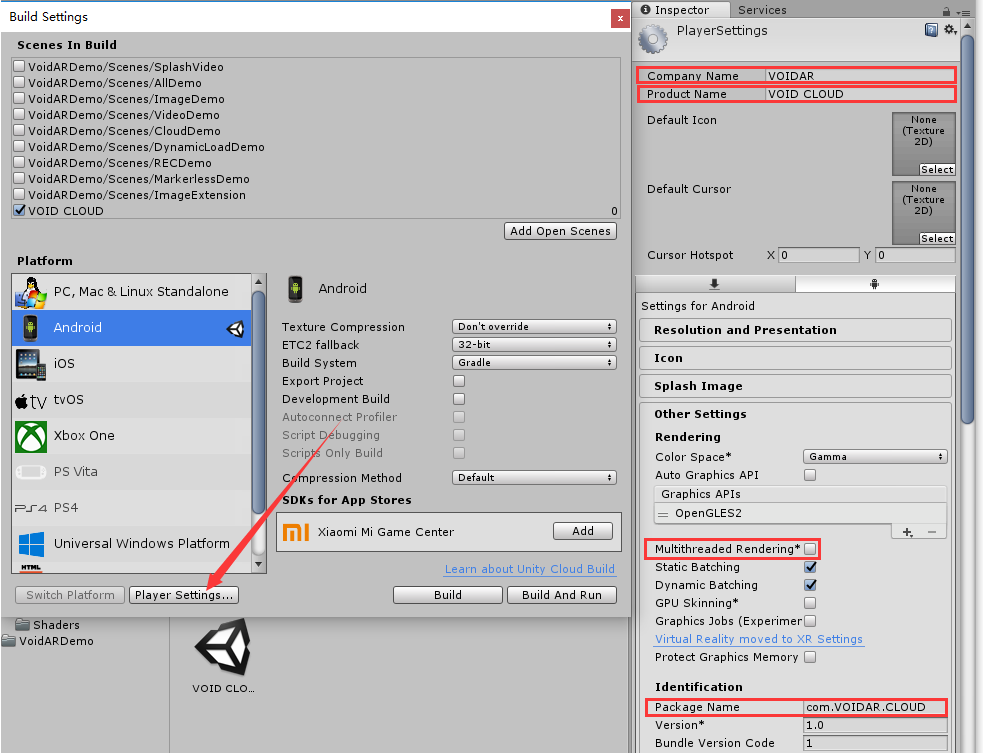

Click [ Player Settings... ] button, check the “Inspector” area, setup the parameters as below or as your needs.

Set Company = "VOIDAR"
Set Product Name = "VOID CLOUD"
Set Bundle Identifier = "com.VOIDAR.CLOUD"（ Cannot use default value, otherwise it fail to build. ）
Important

Cancel the selection of “Multithreaded Rendering” !

Finish the settings, and click [ Build ] button.

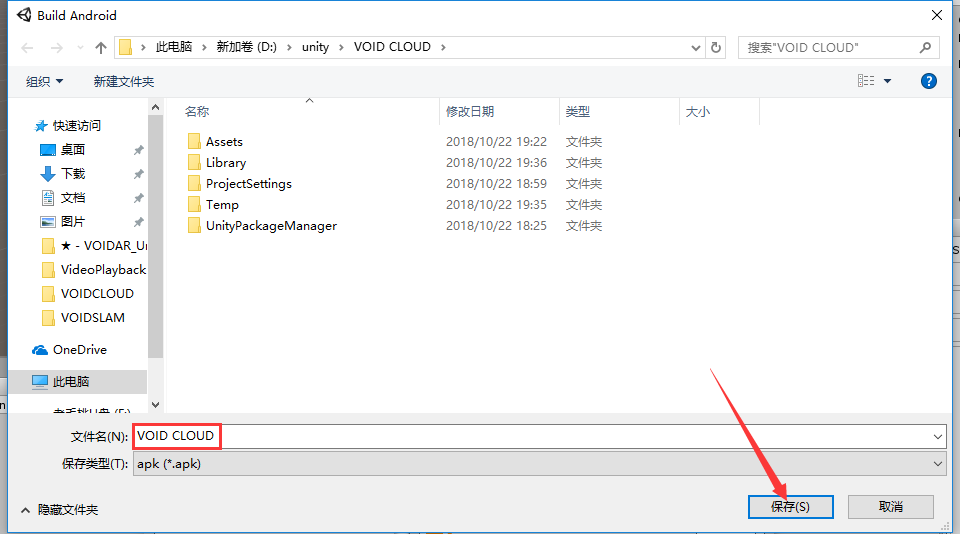

Set the file name as “VOID CLOUD”, and click [ save ] button to start building.

It takes minutes while building, please wait...

When the build is done, it will generate an apk file “VOID CLOUD.apk”.

Android Build is completed.

iOS

iOS Build requires Mac device ( such as MacBook Pro、MacBook、iMac、Mac mini etc. )

Switch the platform to iOS platform in Unity, and build Xcode project.

Warning

It is recommended to use Mac device to build Xcode project. If previously you make the project in Windows environment, you can export the Unity project as a unitypackage, or copy it to Mac device and build for xcode project.

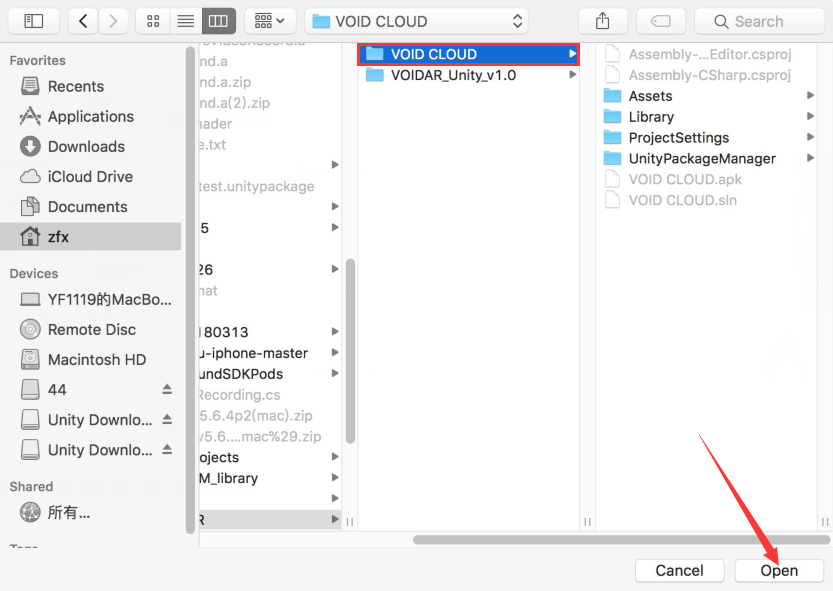

Launch Unity and open the saved or copied VOID CLOUD project. ( Skip this step if project opened already )

Click [ Open ] button to open the project.

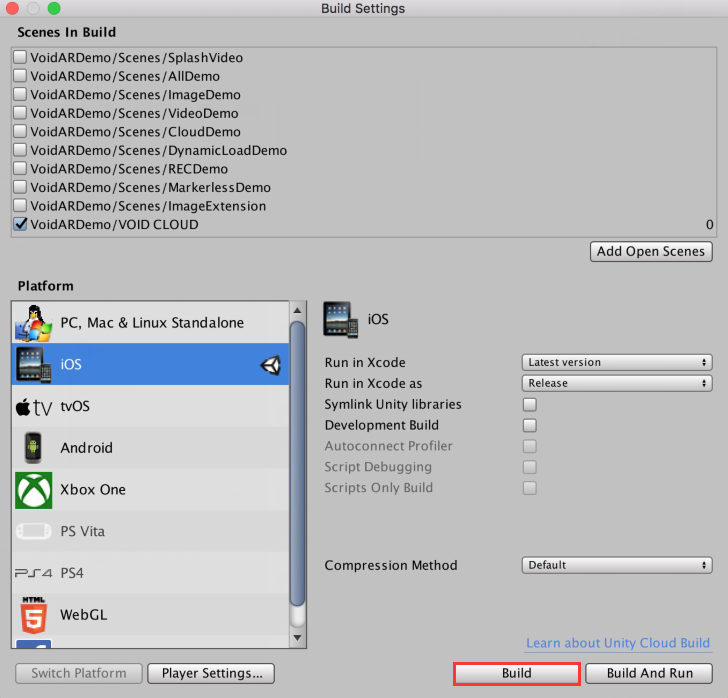

Switch to iOS platform in Unity, click [ File ] -> [ Build Settings... ].

Select iOS tag, if the [ Switch Platform ] button is grey, you need to download the Unity iOS Support. Please click on the right side of the [ Open Download Page ] button, download and install.

Click [ Switch Platform ] button, switch the platform to iOS.

Click [ Player Settings... ] button after switch.

340

Important

Cancel the selection of “Multithreaded Rendering”!

Important

Cancel the selection of “Strip Engine Code”!

341

Build the Assetbundle for the iOS platform

Close the Build Settings interface, build the Assetbundle for the iOS platform next. Select the “ImageTarget.prefab” generated just then, and click [ VoidAR ] -> [ AssetBundleBuilder ].

115

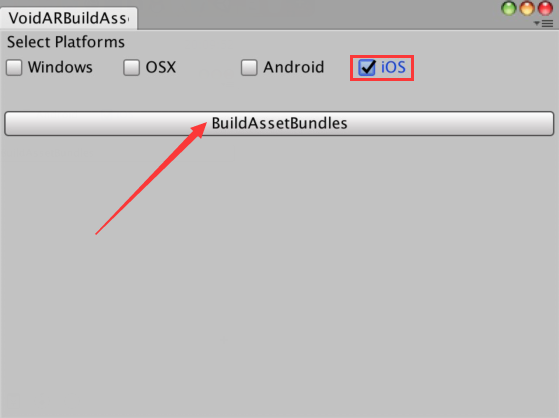

Check [ iOS ], and click [ BuildAssetBundles ].

116

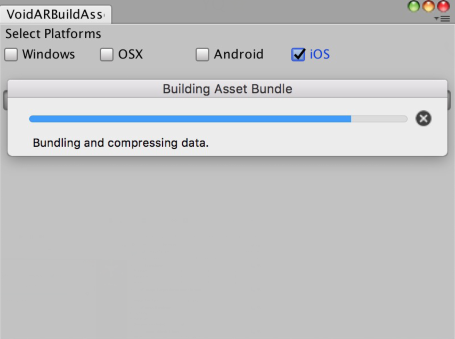

It takes minutes for generating, please wait...

117

Close this window after generating is done.

Back to cloud platform management interface, setup for corresponding resource.

Click [ Modify ] for “Panda” marker.

318

You will see as below:

319

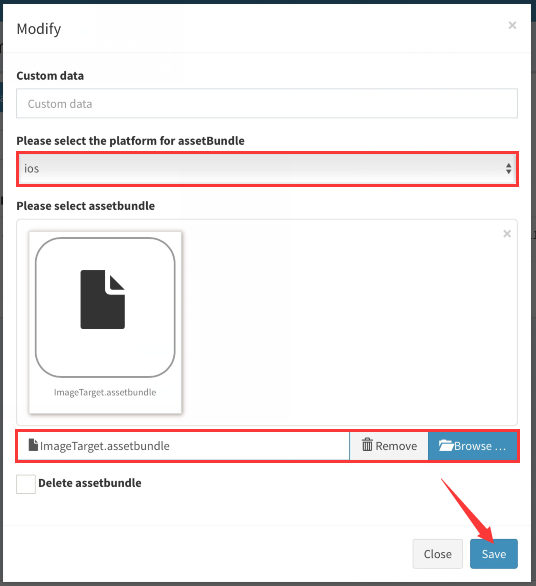

Set assetbundle platform = “ios”
Upload assetbundle file

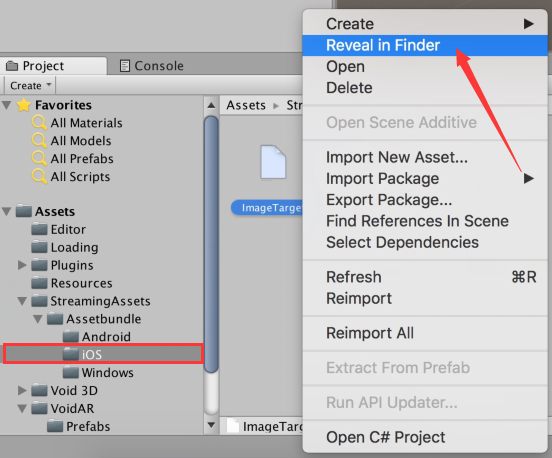

You can find the directory of your "assetbundle" file by checking in Unity and right click the corresponding resource and select [ Reveal in Finder ].

For the assetbundle file path of iOS, it shows as below:

120

After upload is done, click [ Save ].

321

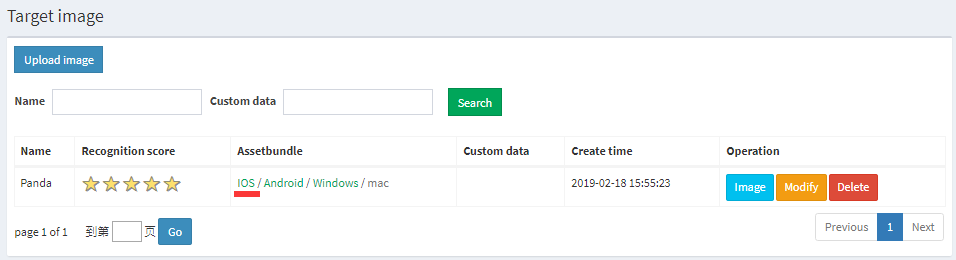

After upload, the "IOS" platform is highlighted as below:

322

Back to Unity, select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.

Set Camera = "后置攝像頭"(Rear Camera)

Select [ File ] -> [ Build Settings... ], cancel all default scenes, and click [ Add Open Scenes ] button to add current scene into the build area.

It shows as below:

Finish the settings, and click [ Build ] button.

Set the project folder name “Output”, and click [ Save ].

Open the Xcode project.

Setup parameters

Filling in your configurations: your certificate, deployment target.

Click [ Unity-iPhone ] on the left side, config the parameters as below or by your customization:

Display Name = "VOIDAR_Test"
Bundle Identifier = "com.VOIDAR.Demo"
Version = "1.0"
Build = “1.0”
Team = “Your Certificate”
Deployment Target = “8.1”

Add Accelerate.framework

Select General tag and scroll down, click the "+" in the "Linked Frameworks and Libraries".

Select “Accelerate.framework” from the prompted window, and click [ Add ].

After doing that, you will see “Accelerate.framework” from the list of "Linked Frameworks and Libraries" as below:

Add camera usage privacy

Select “Info” tag, click the "+" below the "Supported interface orientations". Select “Privacy - Camera Usage Description” in the prompting list.

Set Enable Bitcode = “No”

Select ”Build Settings” tag, set Enable Bitcode = “No”.

Cancel armv7

Select "Build Settings" tab, expand Architectures, and select "Other...".

The pop-up interface, select "armv7" and click "-".

After canceling, the display is as below.

Connect iphone or ipad to the Mac device, Click [ Run ].

After building, there will be an application “VOIDAR_Test” built into your iphone or ipad.

The iOS build is done.

Windows exe

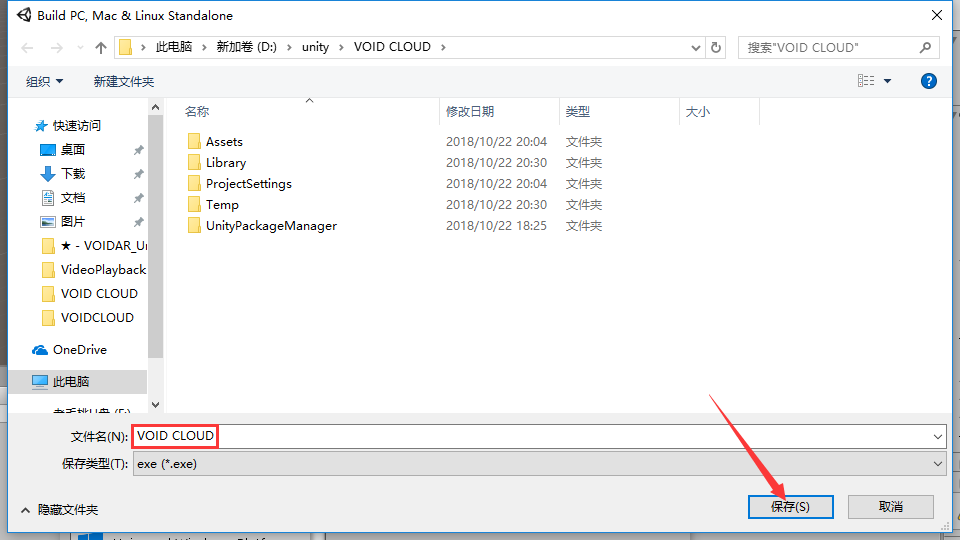

First, switch the platform to PC from [ File ] -> [ Build Settings... ].

Select PC tag, click [ Switch Platform ] button, switch the platform to PC.

123

Important

Set Architecture = "x86_64"

341

Warning

Make sure your PC is connected with a camera.

Select ARCamera, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties, and select camera.

124

Select [ File ] -> [ Build Settings... ], cancel all default scenes, and click [ Add Open Scenes ] button to add current scene into the build area.

125

It shows as below:

Setup parameters

Click [ Player Settings... ] button, check the “Inspector” area, setup the parameters as your needs.

Finish the settings, and click [ Build ] button.

Set the file name as “VOID CLOUD”, and click [ save ] button to start building.

Important

It will raise an error when running the exe if the filename has "Chinese characters" in it.

127

It takes minutes while building, please wait...

128

When the build is done, it will generate an exe file “VOID CLOUD.exe”.

Windows exe build is completed.

By here, VOID CLOUD ( Image Target Recognition ) process is done.

久草手机在线观看_久久经典国产_久久成人午夜_亚洲国产精品久久久 - 女同变态中文字幕

VOID CLOUD (Image Target Recognition)

Note

Part 1. Introduction

Part 2. Reading Guidelines

Part 3. Development Environment

OS

Unity Version Support

Note

Part 4. Implementation process

Step 1. Register and login the cloud platform

Step 2. Create Database for Cloud Recognition

Step 3. Cloud Resources management

Note

Step 4. Open new Unity project

Step 5. Import VOID AR SDK

Step 6. Delete Main Camera

Note

Step 7. Drag the prefabs “ARCamera” and “ImageTarget”

Step 8. ARCamera Setup

Step 9. Marker Setup

Warning

Step 10. Model Setup

Note

Step 11. Debug

Warning

Step 12. Setup Cloud Recognition parameters

Step 13. Build Assetbundle

Important

Note

Step 14. Upload Cloud Recognition Resource

Step 15. Delete the ImageTarget

Important

Step 16. Save Scene

Step 17. Run Cloud Recognition in Windows

Warning

Step 18. Publishing Builds

Android

Note

Important

iOS

Warning

Important

Important

Windows exe

Important

Warning

Important
